The Wilier Cento 10 NDR includes a rear-end suspension system to add extra comfort for endurance riders

Product Overview

Overall rating:

Score 9

Wilier Cento 10 NDR

Pros:

  • Beautifully designed premium endurance machine
  • Very comfortable ride
  • Top-end groupset and components
  • Clever integrated bar and stem

Cons:

  • Expensive

Product:

Wilier Cento 10 NDR Super Record Disc

Manufacturer:

Price as reviewed:

£9,000.00

With an increase in global numbers of older recreational cyclists looking for a premium road bike, Wilier sees this as a growing market for its products. Many won’t want the race-oriented geometry that you find on those top end-road bikes that are often consumer versions of the bikes ridden by pro teams. The Wilier Cento 10 NDR builds on the design features of the brand’s successful race bikes to offer a more endurance-focussed ride. It follows the modern endurance trends, offering a more relaxed riding position, wider tyres and disc braking.

Frame

The northern Italian brand has built rear suspension into the Wilier Cento 10 NDR to increase rider comfort. Called Actiflex, this uses an alloy linkage between the seatpost and seatstays that has two pivots so that the two can move relative to each other. The pivot points are built into the carbon layup of the seat tube and seatstays. It’s designed with widely spaced hinge bolts so that rear-end rigidity is maintained.

There’s a ‘technopolymer’ block in the linkage to provide damping. It’s compressed as the pivot moves up over road imperfections. You can get the block in three different densities to fine-tune the ride characteristics; the bike is shipped with the medium-density block.

Wilier Cento 10 NDR

Wilier’s suspension system adds road smoothing to the ride without affecting frame rigidity

This allows up to 6mm of movement. It may not sound like a lot, but you can feel its road-smoothing effect on bumpier roads. Wilier has had a multi-year programme to design the linkage, including using accelerometers attached to the frame to measure vertical deflection over different surfaces.

The technopolymer used is heat stable between -40°C and +150°C, so ride characteristics won’t change with temperature.

Wilier Cento 10 NDR

The Barra and Stemma combination gives a totally concealed cable run

The Wilier Cento 10 NDR boasts other comfort features too. It has a shorter reach and higher head tube than Wilier’s race bikes for a more upright riding position. It also uses a round-section Ritchey carbon seatpost, which should be more compliant than an aero design.

But the front end of the frame of the Wilier Cento 10 NDR shares a lot of the aero design features of the Cento 10 Air race bike, with NACA truncated aerofoil tube sections to the down tube, fork and seatstays.

There’s a lot of adaptability built into the frame of the Wilier Cento 10 NDR. The bike is designed for disc brakes, but if you prefer rim brakes, there are direct mount rim brake bolts and the necessary cable ports built into the frame and fork. And the dropouts have neatly built in adapters that let you switch between disc brake and rim brake axle standards.

Specification

As well as its aerodynamics, Wilier has developed the cockpit integration on its newest machines. The Cento 10 Air race machine has an integrated single piece bar and stem, with all the cables running internally. The Wilier Cento 10 NDR takes this a stage further with a separate bar and stem which nevertheless hides the cable runs from the levers while offering more adjustability than a one-piece aerobar.

Cables and hoses run inside Wilier’s bespoke Barra carbon bar then enter a cavity in the chunky Stemma carbon stem. They then pass through a notch in the headset bearing into the frame. For an electronic set-up, all the wires and brake hoses run internally; with a mechanical groupset, like the Super Record on the test bike, there’s not quite enough room for all the cabling so the rear brake hose alone is routed externally into the down tube.

Wilier Cento 10 NDR

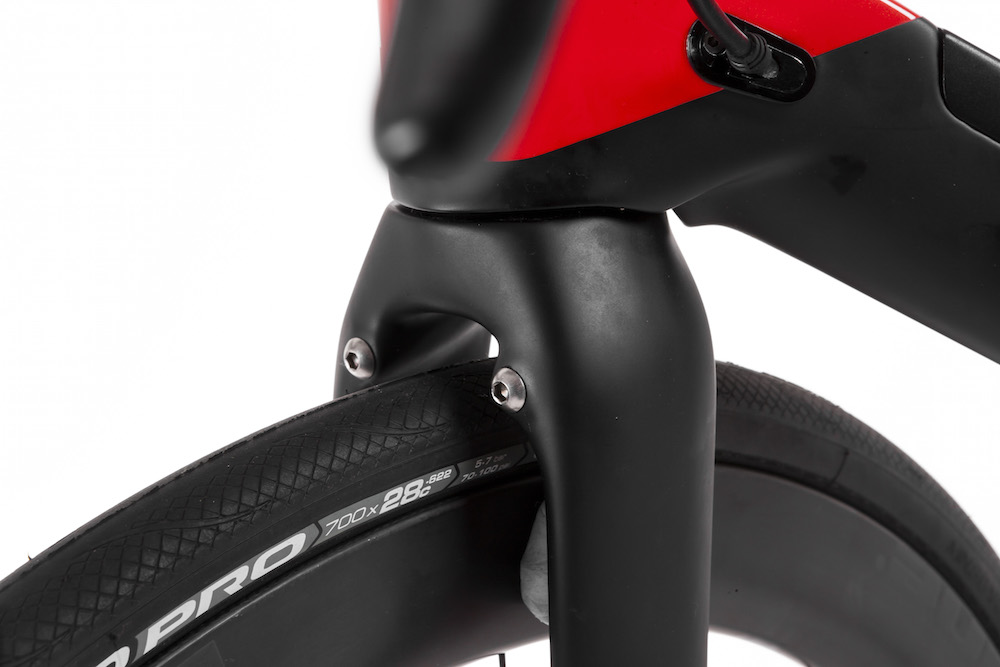

The frame has direct mount brake bosses, so you can run rim brakes if you want

The front brake hose runs internally through the fork crown into the left fork leg, so there’s only the short section of hose running to the caliper on view. It adds up to a very neat look with a minimum of cabling on view without adversely affecting shifting or braking quality.

The built-in comfort features of the frame allow the Wilier Cento 10 NDR to run deeper section DT Swiss 1400 Spline 47 carbon wheels. They carry Vittoria Rubino Pro tyres, with their 28mm width allowing them to be run at lower pressures, also helping add comfort to the ride. There’s enough clearance for 30mm tyres.

Wilier Cento 10 NDR

Campagnolo’s disc brakes are effective and neat

New this year, the Campagnolo hydraulic disc brake groupsets include a range of features to enhance usability. It’s not just the braking that has changed either, with Campag redesigning the chainset and rear mech to deal with the different alignment of disc-braked axles.

The test Wilier Cento 10 NDR comes with Campagnolo’s top mechanical groupset, Super Record. This boasts impressive lever ergonomics. They’re a bit wider and taller than a rim brake lever, but still have the same curved shape and soft hoods, with the levers placed exactly where you need them for comfortable braking and shifting. Wilier uses 160mm brake rotors front and rear for assured stopping power, with little risk of fade.

Riding the Wilier Cento 10 NDR

Although it doesn’t look it, the reach on the Wilier Cento 10 NDR feels significantly shorter and the bars higher than on a standard race bike. So you sit more upright and more of your weight is on the saddle, where the suspension is sited.

You can feel Wilier’s suspension system in operation as soon as you set out. It works well to smooth out larger bumps in the road. Although you can still feel the surface gravel on typical UK roads it’s less pronounced, although the wide 28mm tyres run at lower pressure may also play a part.

Where the suspension stands out is on bumpier surfaces: it really helps on cobbles and on the gravel paths which we rode at the bike’s launch. On such surfaces, you really float over the imperfections.



Wilier’s carbon bars have an elliptical section to the tops, so you have extra room to rest your hands, while the Campagnolo hydraulic levers’ hoods are a bit wider than its mechanical units and have really comfortable grips, making them a comfortable perch for the hands.

Wilier Cento 10 NDR

The alignment on the Campagnolo Super Record groupset was adjusted to compensate for wider axles on disc bikes

Shifting is, as you’d expect from Campagnolo’s premier groupset, exemplary, while stopping power from the Campagnolo disc brakes is good too, with a light action.

Value

As a premium Italian brand with a sales volume comparable to Colnago, and having put significant development into the Wilier Cento 10 NDR, you wouldn’t expect Wilier’s new machine to come cheap, particularly when kitted out with Campagnolo’s premium mechanical groupset and other high quality components. Even with Ultegra hydraulic braking the Wilier Cento 10 NDR costs over £5,000, although switch to rim brakes and the price comes down a bit.

The Super Record cassette includes six titanium sprockets

But the Wilier Cento 10 NDR does offer something unique with its neat suspension system and extensive integration. It’s very comfortable for extended rides and is a thing of beauty too. The suspension system works well and adds something novel to the ride, although you might hesitate to take such a top-end machine onto the cobbles and gravel on which it really stands out.

If you’re looking to spend this amount of cash on an NDR, it’s worth considering other groupset options. If you don’t mind kitting out an Italian bike with a non-Italian groupset, there are Dura-Ace Di2 and SRAM Red eTap variants at a similar price, which will give you an entirely enclosed hose run for an even neater look.

Verdict

The Wilier Cento 10 NDR provides an interesting option if you’re looking for a more endurance-focussed and comfortable ride. The rear-end suspension system provides a novel approach to increasing ride comfort and works very well, particularly on the bumpiest surfaces. You get an easier riding position from the bike’s geometry too, without needing to resort to a stack of spacers under the stem. Wilier’s cockpit integration gives the Cento 10 NDR a very clean, classy look which emphasises its premium status.

Details

Frame:NDR 60 ton carbon monocoque
Fork:NDR 60 ton carbon monocoque
Size range:S-XL
Size tested:M
Weight:7.65kg/16.9lb
Groupset:Campagnolo Super Record H11
Gear ratios:50/34, 11-27
Wheels:DT Swiss ERC 1400 Spline 47 carbon
Tyres:Vittoria Rubino Pro 28mm
Brakes:Campagnolo Super Record H11 hydraulic disc
Bars:Wilier Barra carbon
Stem:Wilier Stemma carbon
Seatpost:Ritchey Pro carbon
Saddle:Selle Italia Novus
Distributor:www.hotlines-uk.com
