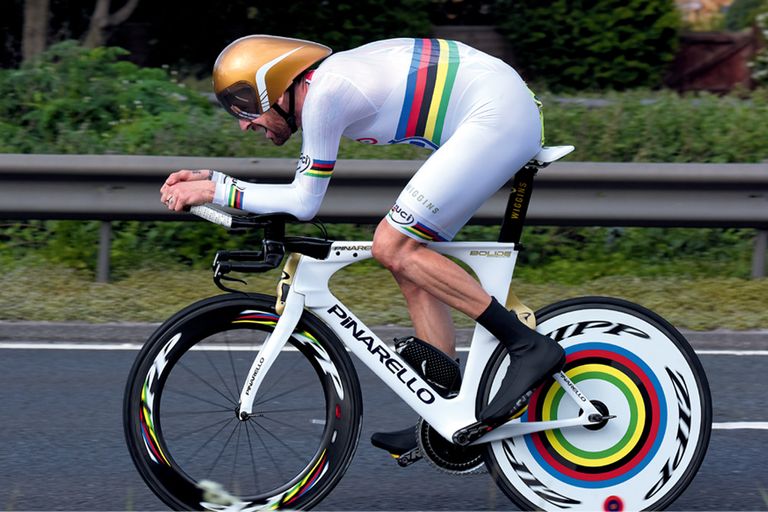

Sir Bradley Wiggins's 10 mile time trial bike

Having moved from Sky to his own, eponymous team in mid-April, Sir Bradley Wiggins is now riding a SRAM groupset and Zipp wheels.

This bike would not be allowed in an international event; the non-standard grippy material on the saddle and aero bottle (which actually improves the bike’s aerodynamics) are both banned by the UCI but allowed by CTT regulations.

However, even the most extensive aerodynamic features could do nothing against the bruising headwind on the return leg, which stopped Wiggins from beating Alex Dowsett’s competition record of 17-20.

Saddle

Wiggins’s favoured Fizik Ares time trial saddle has been customised with a patch of what looks like a grippy rubber surface picked up from a hardware shop. It’s there to keep him perched as far forward on the saddle as possible, making him more aerodynamic and maximising his pedalling efficiency.

Wheels

This is a Zipp wheelset just like the one used by Tony Martin in the Tour de France last season, featuring a disc rear and 808 front wheel with rainbow stripes. Wiggo’s wheels (with Wiggo roundel stickers to cover the valves) arrived in the post the week before the event — just enough time to fit a pair of 23mm Veloflex Carbon tubular tyres.

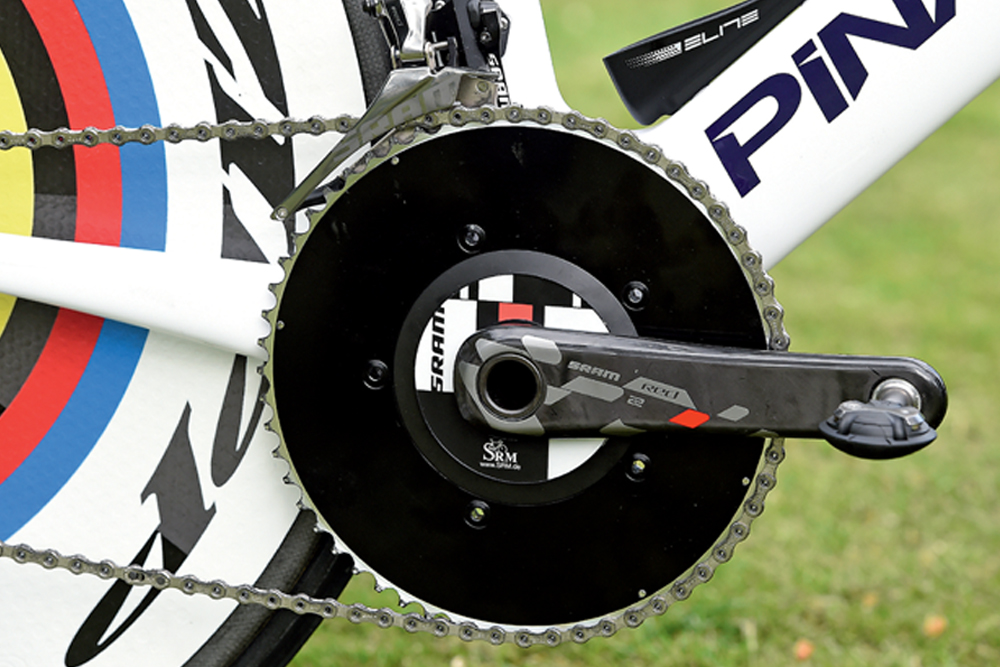

Chainring

Having previously favoured Osymetric chainrings, Wiggins successfully switched to a round 58-tooth big ring ahead of the 2014 World Championships. Now he’s riding SRAM’s aerodynamic version (again, like the wheels, as ridden by Tony Martin) fitted to 170mm SRAM Red carbon cranks and an SRM power meter.

Handlebars

Having switched from electronic Shimano Dura-Ace Di2 to mechanical SRAM Red, Wiggins benefits from the extra few centimetres of reach afforded by the mechanical levers on the aero bars to get further over the bottom bracket. The cockpit set-up, however, remains the same as his previous bikes when riding for

Team Sky and Great Britain.

Chain-catcher

A SRAM chain-catcher stops the chain from slipping when shifting down to the 44-tooth inner chainring, an outcome made more likely due to the big drop down from a 58-tooth big ring. That said, on a flat dual carriageway course like the A63, it’s unlikely that Wiggins shifted out of the big ring at all.

Pedals

These new aerodynamic Speedplay pedals are one-sided with a golf ball pattern that extends onto the underside of the footplates, looking to take advantage of the boundary layer effect of the dimples to reduce aerodynamic drag.

Wind tunnel tested, the Zero Aero pedals debuted at Eurobike in 2014 and will be available to buy later this year.

Helmet

Wiggins has swapped his usual Kask Bambino for a brand-new, custom gold UKSI helmet, as worn by athletes in the 2012 Olympics and by Wiggins himself at that year’s Olympic time trial and again at the 2013 World Champs. It is likely he’ll wear the same helmet for his attempt at the Hour record in 10 days’ time.
