Canyon Endurace CFR review: an Aeroad CFR with wider tyre clearances or an endurance bike with racy intentions?

Canyon launched the new Endurace CFR with one goal in mind: to help Mathieu van der Poel win Paris-Roubaix. And while that didn’t quite work out, with van der Poel opting to use his Aeroad CFR instead, the Endurace CFR platform is still a mighty impressive bike. After all, van der Poel did win the E3 Saxo Classic on the new Endurace CFR in its first outing, proving its prowess for taming cobbles and tough terrain. For riders seeking a more relaxed geometry, the regular Endurace CF and CF SLX are more in line with the endurance-bike recipe and even boast greater tyre clearances than the CFR, as well as provision for mudguards and on-bike storage.

I’ve spent a lot of time on the Endurace CFR – both at the global press camp in the Flemish Ardennes and back home on the rough surfaces of the UK. With upwards of a thousand kilometres in the saddle to date, the Endurace CFR has failed to disappoint me. If anything, the wider tyre clearances (compared to options from the best aero race bikes), combined with the racy fit and aero-inspired frame, make for one of the most entertaining and rapid machines for broken roads.

It’s not perfect, however, and some niggles pertaining to the handlebar configuration and specification choices sully an otherwise impressive package.

Latest Videos From

Watch full video here:

Technical details

The similarities between the new Canyon Endurace CFR and Aeroad CFR are glaringly obvious, but by no means a mistake – Canyon’s modus operandi was to create a bike able to compete at the sharp end in the Spring Classics without impacting the fit and rider position of the Aeroad CFR. The most notable changes are the seatpost and seat tube cutouts, which have been tweaked to accommodate wider tyres – 35mm versus the 32mm maximum clearance on the Aeroad. The fork and headset hardware, however, are identical to the Aeroad, as is much of the geometry. Keeping things largely in line with the German brand’s aero bike means the new Endurace CFR is the fastest endurance bike it’s ever made, testing within 1 watt of the Aeroad at 45km/h in the Tour Magazine wind tunnel test protocol: 204 vs 205w.

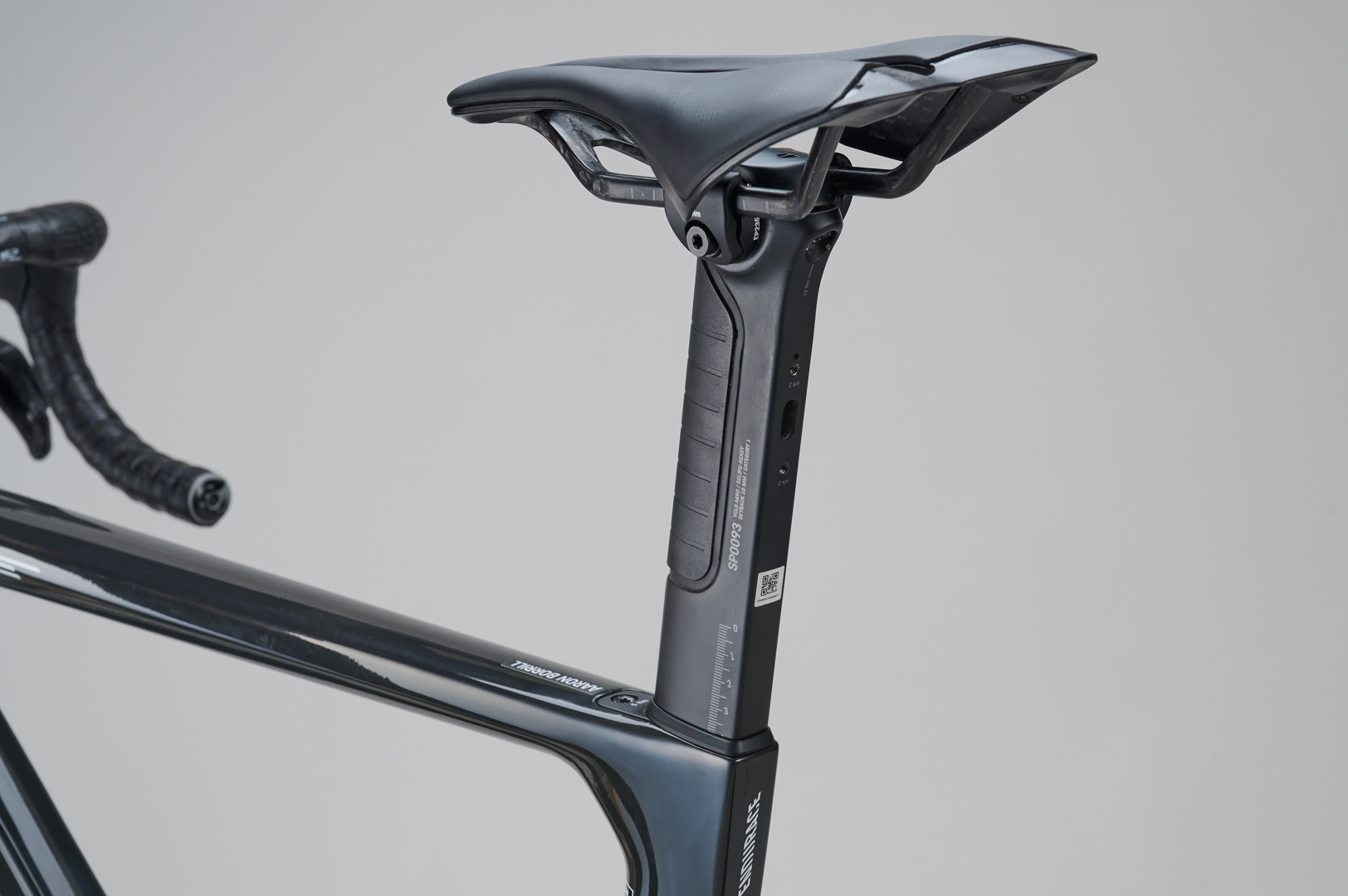

The Endurace CFR is constructed from Toray T1100, T800, and YS80 pitch-based fibres to balance strength and stiffness. This layup makes the frame naturally very stiff yet compliant enough to ensure comfort over choppy terrain. The Endurace CFR also gets a new SP0093 VCLS Aero seatpost, claimed to improve ride quality - an industry-first aero-comfort post that offers 25 per cent more compliance over a rigid post.

Owing to the Aeroad CFR-inspired geometry and blueprint, the big news pertains to the tyre clearance. Canyon reckons 32mm is no longer the upper limit but rather the baseline for Spring Classic race bikes, with the new Endurace CFR now able to clear 35mm front and rear. According to Canyon, tyre widths can be pushed even further to 40mm in dry race conditions, but this is not recommended outside the WorldTour due to potential frame damage and warranty voiding.

The new Endurace CFR is available in three colour options (Pro Black, Paradigm Shift, and Dark Matter) and six sizes: 2XS, XS, S, M, L and XL. Sizing is a little larger than other brands', so I suggest checking Canyon’s sizing chart to ensure the best fit. In retrospect, I should have sized down to a small, but based on my body measurements (I can ride both 54 or 56cm), Canyon reckoned I’d get away with riding a medium. The fit is not typical of the classic endurance bikes, as the Sport Pro Geometry allows Canyon-sponsored riders to seamlessly switch between Endurace CFR and Aeroad CFR race setups.

While the geometry is not identical to the Aeroad CFR, it is very similar with a marginally longer wheelbase and chainstays for improved stability. In size medium, the parallel head and seat tube angles of 73.25 and 73.1 degrees are spot-on for this racing application and complement the aggressive stack (563mm) and reach (393mm).

Specifications

The Endurace CFR can be specced in one of two configurations: SRAM Red AXS or Shimano Dura-Ace Di2, it all comes down to your preferences. The bike pictured here came outfitted in the latter, complete with 50/37T, 10-33T gearing configuration, which I felt was an ideal spread for the terrain that comprises the Surrey Hills.

As has become de rigueur in the pro peloton, there are a host of crank options available depending on the frame size. My size medium test bike came standard with 165mm crankarms, down from 172.5mm. Your optimal crank length, however, can also be specified from 165 to 175mm in the MyCanyon programme.

System weight wasn’t a driving motivator when designing the new Endurace, but the engineers still made sure it came in as light as possible. Considering that many of the regular aero race bikes are between 7.4-7.6kg (especially in Spring Classics trim), Canyon has nailed the system weight. Our medium test bikes tipped the scales at 7.55kg without pedals – a number you can reduce by 120g by speccing the CP0053 Race bar.

The balance of the build comprises a Canyon SP0093 VCLS Aero seatpost, Selle Italia SLR saddle, 65mm DT Swiss Arc 1100 wheels wrapped in 35mm Pirelli Pzero RS tyres and a Canyon CP0048 Pace bar with classic drops.

Performance

The Endurace CFR doesn’t ride like a typical endurance bike, and I personally don't think it should be classed as one, if I’m honest. It’s more of an Aeroad CFR with more utility. The riding position is aggressive, and the geometry has been tuned to deliver a fit similar to the Aeroad CFR, a race-honed platform with no ties to the endurance concept. As a result, riders need to be aware of this and shop accordingly – the Endurace CF SLX and CF are the bona fide endurance platforms in the range.

When I tested the bike in Belgium, I was blown away by the way it handled cobblestones and poor roads. I was also impressed by its descending prowess and ability to accelerate quickly out of corners, but I was unsure how this would translate to my typical riding routes back in the UK. I didn't expect it to be as fast as some of the racier bikes I’ve been riding on home roads, but it blew me away - particularly the average speeds and overall riding manners of the platform. I do feel this stems from the lower pressures of the 35mm tyres, but also the lateral compliance of the seatpost – the combination of which has resulted in more tyre staying in contact with the road surface, absorbing imperfections and not skimming over the terrain.

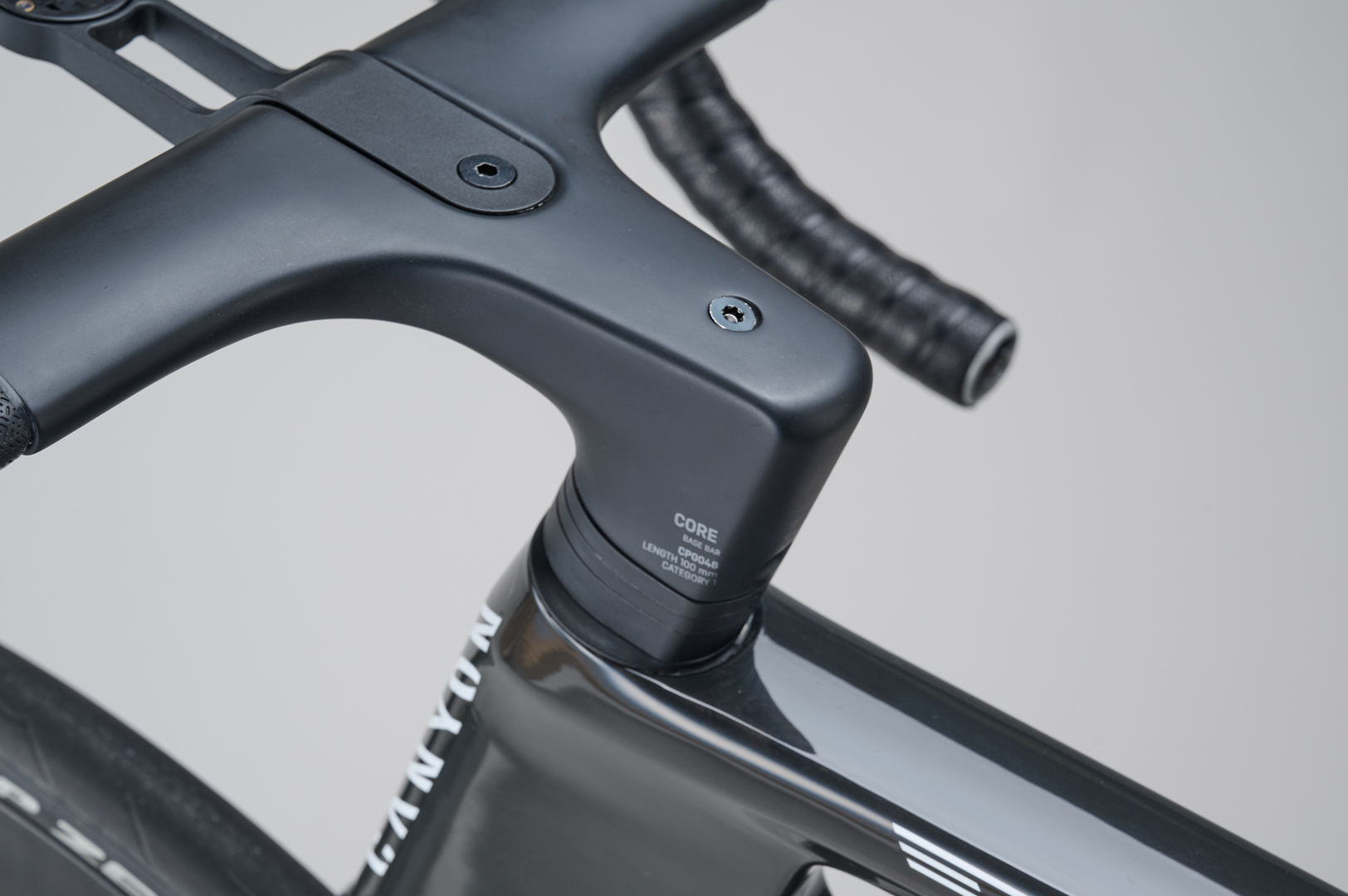

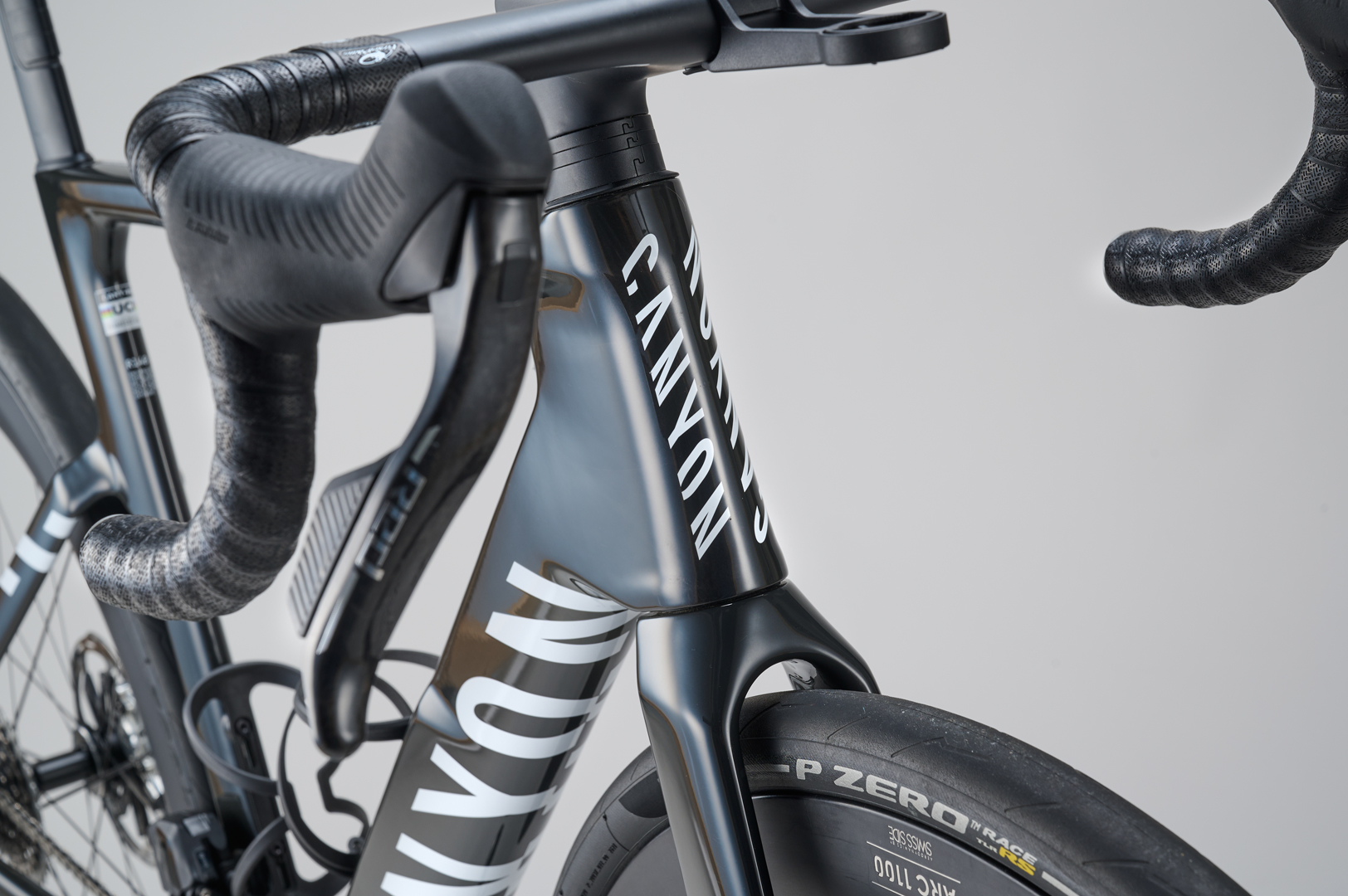

I felt the front end was a bit too high for my liking, as the CP0048 Pace bar spacers essentially increased the effective stack height and shortened the reach a touch, resulting in not getting enough weight over the front axle during cornering. The handlebar system, however, is designed to offer 20mm of height adjustment without cutting the steerer or brake hoses, but I couldn’t get it sorted in time for this test.

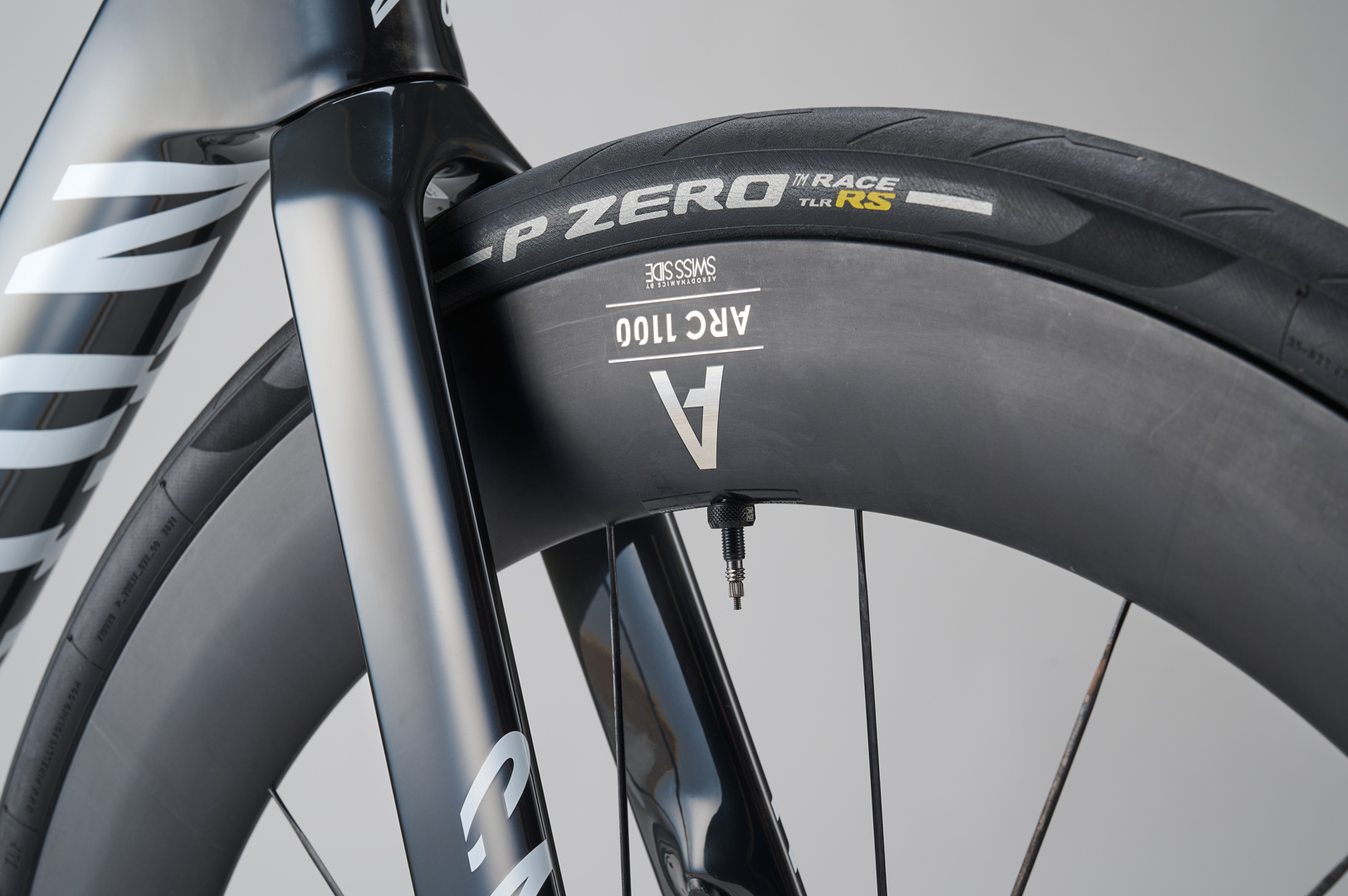

Overall, the bike is super grippy in the corners, thanks to the 35mm tyres. I went pretty low on the tyres, with 40psi front/rear proving ideal for my weight. I was very impressed by the stock Pirelli PZero RS tyres – the compound is balanced, delivering good grip and rolling efficiency. The shorter cranks also mean you can scythe through corners with ease and confidence, and get on the pedals earlier, thanks to the greater crank clearance at aggressive lean angles. Gearing is impressive, and you won't feel hampered on descents thanks to the 50/37T, 10-33T drivetrain. There’s ample range for steep kickers and longer climbs, too.

The boxy frame profile, together with the 65mm DT Swiss Arc 1100 wheels, means the bike can be a handful in crosswinds or gusts, requiring the drops to be kept in check to improve control. It’s nothing to be alarmed by and can be totally solved by fitting a shallower front wheel.

Value

The Canyon Endurace CFR is an impressive bike. Melding the aerodynamics of the Aeroad CFR platform with wider tyres clearances and comfort has resulted in an outrageously capable machine that can dismiss poor road surfaces at unnoticeably fast speeds.

While it’s not quite what I’d consider a veritable endurance bike, I do undersratnd Canyon made this particular bike to solve an issue riders and teams had with the Aeroad CFR: tyre clearance. Should it be called the Endurace CFR? Maybe not, as it’s more of an Aeroad CFR Plus than a veritable Endurace – the Endurace CF SLX and CF prove this, but that doesn’t take away from a really impressive bike.

I suspect it will appeal more to the Aeroad CFR owner who wants greater tyre clearance and comfort while keeping the same racy fit, but this, coupled with the £8,500 / $10,499 / €9,000 sticker price, puts it out of the picture for a large portion of the cycling demographic. There are other options within the range, including the Endurace CF SLX and CF platform, which offer more relaxed upright fits, greater utility, more affordable pricing and even larger tyre clearances.

Tech spec

• Price: £8,500 / $10,499 / €9,000
• Brand: Canyon
• Frame: Canyon Endurace CFR-Pro
• Fork: Canyon FK0137 CF Disc
• Weight: 7.55kg (actual, medium)
• Sizes: 2XS, XS, S, M, L, XL
• Levers: SRAM Red AXS
• Brakes: SRAM Red AXS, 160/140mm front/rear
• Rear derailleur: SRAM Red AXS
• Front derailleur: SRAM Red AXS
• Crankset: SRAM Red AXS 50/37T
• Bottom bracket: SRAM Dub Press-fit
• Cassette: SRAM Red AXS 10-33T
• Chain: SRAM RedE1 Flattop, 12-speed
• Wheels: DT Swiss Arc 1100 65mm
• Tyres: Schwalbe One TLR 28mm
• Bar/stem: Canyon CP0048 Pace T-Bar
• Seatpost: Canyon SP0093 VCLS Aero
• Saddle: Selle Italia SLR Carbon
