More gears, less weight: meet the new Shimano Tiagra R4000

It’s been more than a decade since Shimano last gave Tiagra a full overhaul. While the 105, Ultegra and Dura-Ace gruppos surged ahead with extra gears and new tech, Shimano’s workhorse road groupset quietly held the line at 10-speed. That changes for 2026.

The new Tiagra R4000 is a fully refreshed 2x11-speed mechanical groupset that not only adds an extra cog but also reduces system weight by more than 200 grams compared to previous configurations.

Made for "real-world usability," the entry-level componentry is meant to deliver confident shifting, practical gearing and a more accessible fit for a wider range of road riders — all for a little over $1000 USD.

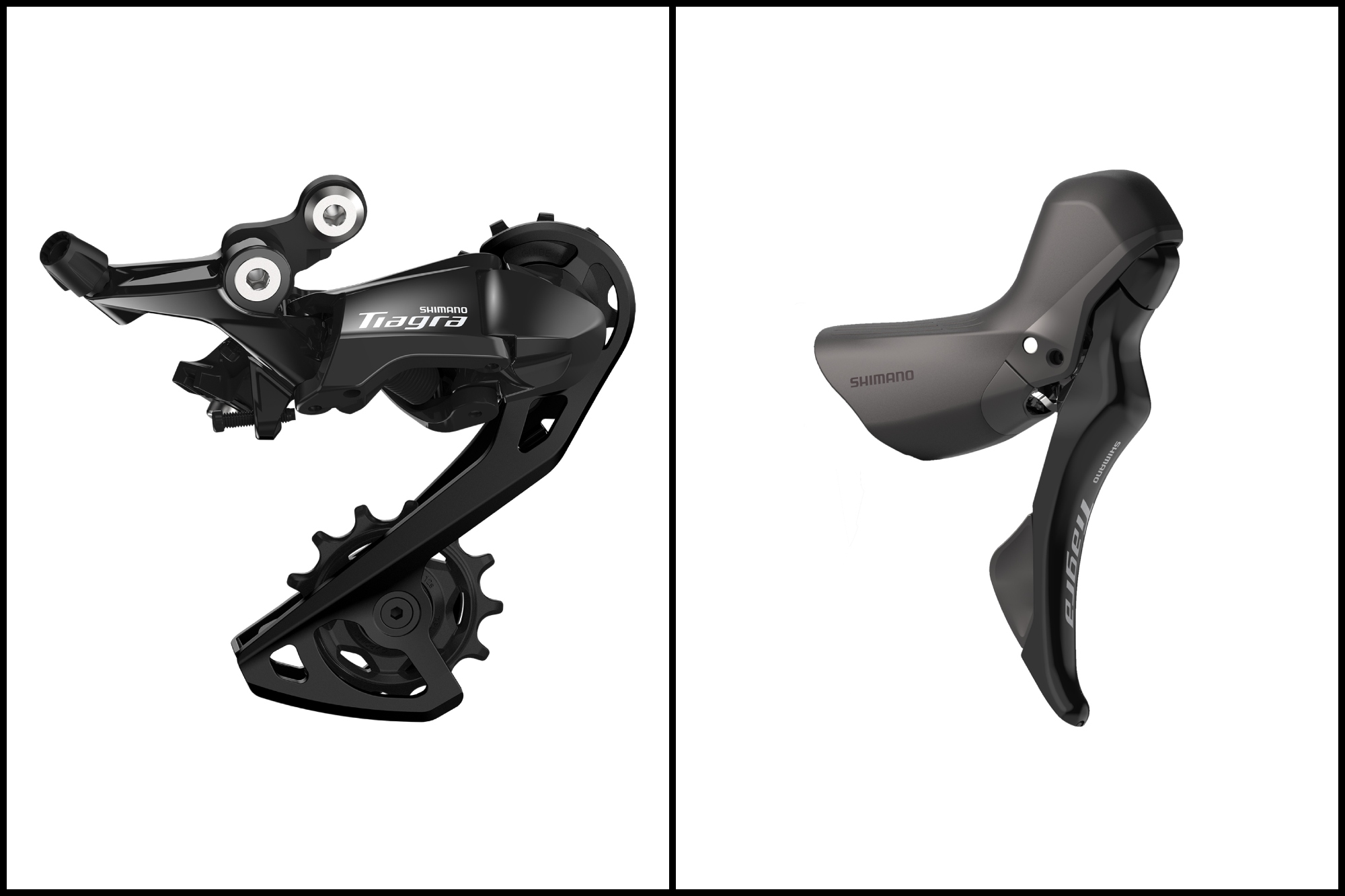

At the centre of the update is a redesigned Dual Control lever, which features a shape similar to its 105 series siblings, with the aim of suiting a wider range of hand sizes. The reach has been refined, the hood shape reconsidered, and overall comfort improved to deliver a more confident shifting and braking experience (brought in tandem with the existing hydraulic BR-4770 brake callipers)

The move to 11-speed brings with it a new RD-R4000 rear derailleur as well as a new Hyperglide 11–36T cassette, which not only delivers a 327% gear range to tackle even the steepest of climbs, it also helps in significantly reducing the system weight.

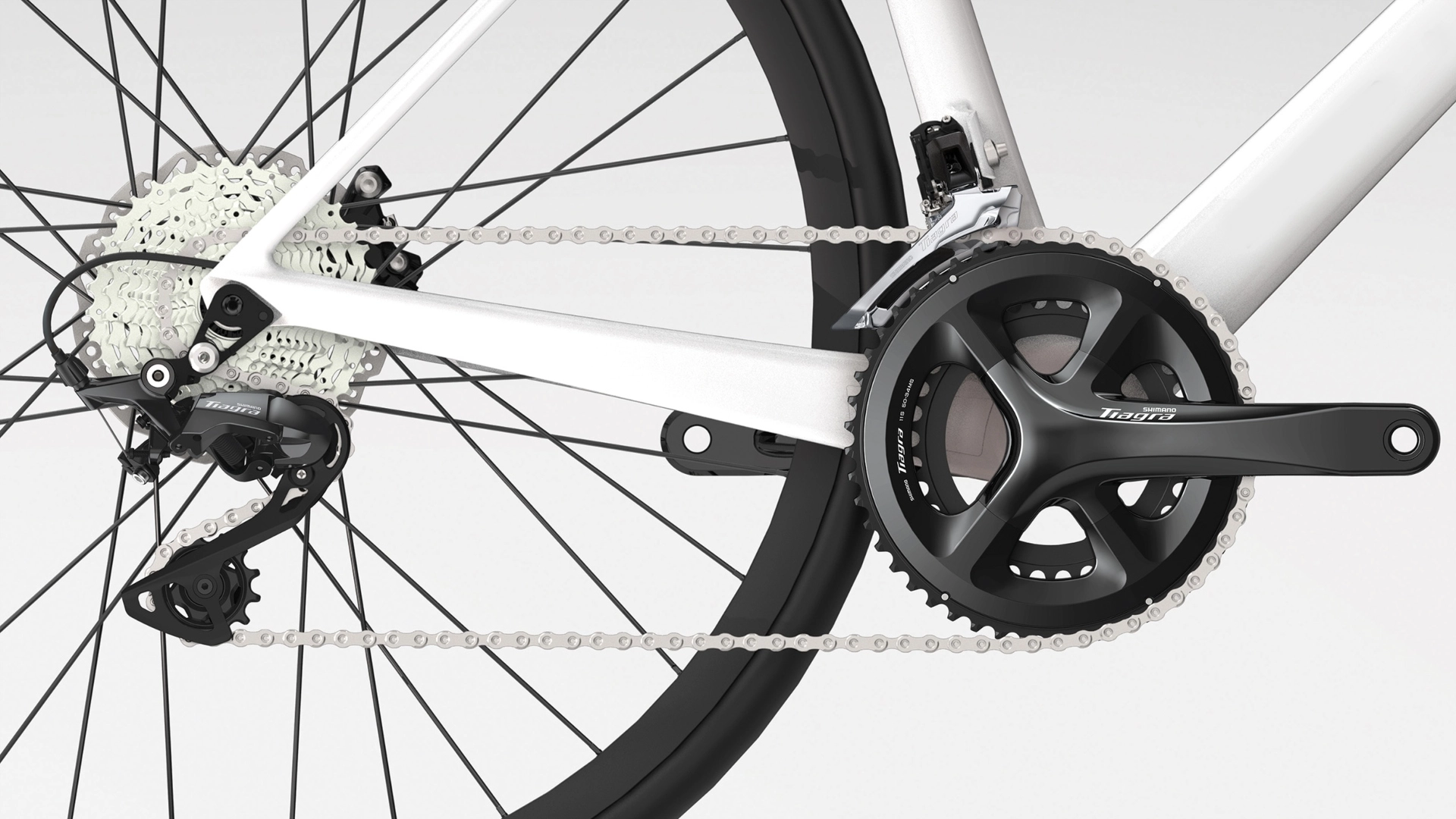

The groupset also features a new crankset, said to "embody the DNA of SHIMANO’s high-end road designs," with a balance of weight and efficiency. The road-specific offerings come in either a 52-36t or 50-34T combo with crank arm lengths ranging from 165mm to 175mm.

The outgoing 2x10 Tiagra disc brake system weighed 2,826g (excluding rotors). Shimano claims the new configuration, aided in part by the lighter 11–36T cassette, trims more than 200 grams from that figure.

In reviews of the previous Tiagra groupsets, performance and longevity were rarely in question. The sticking point, usually, was mass. By addressing that criticism while adding an extra sprocket and broader gearing, Shimano appears to be tackling Tiagra’s biggest drawback head-on.

In an era of 13-speed wireless drivetrains, adding an 11th sprocket might feel like a long-overdue catch-up, if not already an outdated upgrade. But Tiagra has never been about chasing halo tech. It’s the workhorse groupset found on commuters, winter bikes and first race builds alike. With the R4000 launch, Shimano is refining Tiagra where it counts: with broader gearing, lower weight and improved comfort. And for a large portion of the cycling world, that’s enough.
